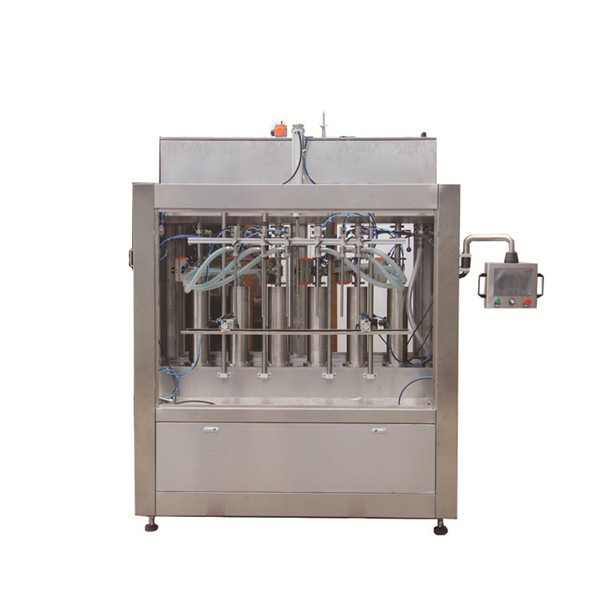

Oppvaskmaskin for flytende fylling

A dishwashing liquid filling machine is a type of automated equipment that is designed to fill bottles or containers with dishwashing liquid. It typically uses a series of pumps, sensors, and nozzles to accurately measure and dispense the correct amount of dishwashing liquid into each container. These machines can be used in industrial or commercial settings to increase production efficiency and accuracy.

spesifikasjoner

oppvaskmiddel flytende maskin
1. With CE Certificate,Meet the GMP
2. Material:304or316Stainless Steel
3. Pay:T/T,L/C

Beskrivelse

CE for EU
ISO9001
Oppfyll kravene fra GMP
longlife of service, low mainteinance rate

Hovedfunksjon

Maskinen er avansert påfyllingsmaskin med høy presisjon som kan fullføre flaskeopptelling, fylling og avdekking automatisk.

Egenskaper

1. Kompakt strukturert, pent, lett å betjene og svært automatisert.

2. komponentens kontakt med materiale er laget av rustfritt stål, lett å rengjøre.

3. Påfyllingsvolumet styres med filmventiler for å sikre nøyaktighet.

4. Høyhastighets og meget nøyaktige påfyllingsventiler sikrer ingen lekkasje.

5. Det er utstyrt med et høyt effektivt fôringssystem.

Språkalternativ

Monitor language: English, Spanish, Arabic, Portuguese, Russian, Italian, French, Korean.

Viktige kjennetegn:

1. Linear type piston filling machine special designed for sticky liquid,such as detergent, shampoo, lotion,lubricant oil,edible oil, etc. international advanced technology, already approved by well-known companies such as Bayer. High filling accuracy, simple structure, stable working, widely application. Counting of bottles inlet, qualitative filling, bottles outlet are done automatically.

2. Not only the whole 13 filling nozzles dosage can be rough adjusted, but also each single filling nozzles dosage can finely adjusted.

3. Kan huske mange parametere, nyttige for forskjellige spesifikasjoner endret, alle fyllingsdoser kan justeres ved berøringsskjerm.

4. Liquid control for normal working liquid level control, sound and light alarm device, guarantee the liquid level at normal condition; also can achieved for inlet valve/pump control.

5. Material outlet joints all adopts quick-assembling type (clamp type), easily for clean. Sealing gaskets adopts fluorine rubber O-ring; sanitary connecting pipes.

6. With protection case, drip gutter, main materials are made of SS304, wetted parts are made of SS316L.

Hovedteknisk parameter

Punkt	Navn	Teknisk parameter
01	Maskindimensjon (L * W * H)	2200mm * 1400mm * 2800mm
02	Maskinens vekt	Ca 1400 kg
03	Beholderåpning indre diameter	≥φ35mm
04	Egnet beholder	1Liter .2Liter
05	Beholderhøyde	80-350mm
06	Strømforsyning	AC 380V; 50 HZ
07	Makt	5kW
08	Fyllingsnøyaktighet	≤ ± 1%
09	Luftkilde	0,6Mpa stabil og ren trykkluft
11	Antall påfyllingsdyser	13
12	Transportørhøyde	900mm ± 50mm
13	kapasitet	≤3200 flasker / time (ta vann som test)
14	Flaske i materetning	Fra venstre til høyre

Rask informasjon

Type: Fyllemaskin
Tilstand: Ny
Søknad: Kjemisk
Emballasje type: flasker
Emballasje: Tre
Automatisk karakter: Automatisk
Drevet Type: Pneumatisk
Spenning: 220v
Effekt: 3KW
Opprinnelsessted: Shanghai. Kina (Fastland)
Merkenavn: VKPAK
Dimensjon (L * B * H): 2200mm * 1400mm * 2800mm
Vekt: 1400
Sertifisering: CE
Service som tilbys etter salg: Ingeniører tilgjengelig for serviceutstyr i utlandet
materiale: SS304
PLS: Panasonic
Berøringsskjerm: Panasonic

Dishwashing liquid filling machines are specifically designed to package dishwashing liquids into various types of containers. These machines are essential for businesses in the cleaning industry who want to streamline their packaging process and increase their productivity. There are several types of dishwashing liquid filling machines available in the market, each with its unique features and benefits.

One of the most popular types of dishwashing liquid filling machines is the volumetric filler. This machine operates on the principle of displacement and uses a piston to fill the containers with the precise amount of liquid required. This type of machine is highly accurate and is suitable for packaging liquids with a constant viscosity.

Another type of dishwashing liquid filling machine is the gravity filler. This machine works on the principle of gravity and uses a funnel to fill the containers with the liquid. The liquid is then dispensed into the containers based on the height of the liquid in the funnel. This type of machine is ideal for packaging low viscosity liquids and is very cost-effective.

The third type of dishwashing liquid filling machine is the overflow filler. This machine works on the principle of overflow and uses a hopper to fill the containers with the liquid. The liquid is then dispensed into the containers based on the height of the liquid in the hopper. This type of machine is ideal for packaging high viscosity liquids and can handle liquids with large particles.

When choosing a dishwashing liquid filling machine, it is important to consider factors such as the size of your production line, the viscosity of the liquid, the type of containers you will be using, and the speed of production you require. It is also important to consider the ease of maintenance and the reliability of the machine.

In conclusion, a dishwashing liquid filling machine is a crucial investment for businesses in the cleaning industry. With the right machine, businesses can increase their productivity, improve the quality of their packaging, and save time and money. When choosing a dishwashing liquid filling machine, it is important to consider factors such as the size of your production line, the viscosity of the liquid, the type of containers you will be using, and the speed of production you require.
